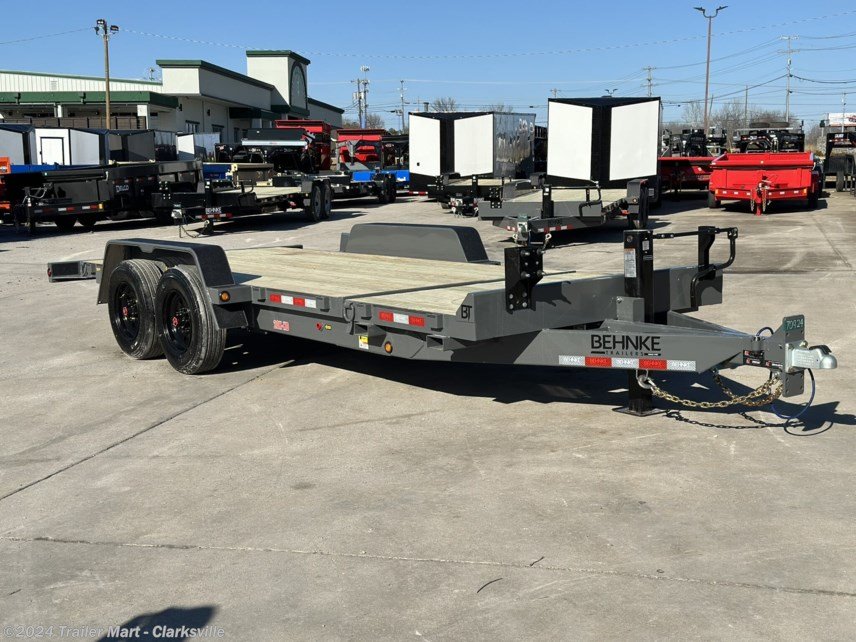

2024 B-B Trailers (Behnke) 16+4 Tilt Equipment Trailer
GVWR: 20,000 lbs.
Weight: 5,020 lbs.
Payload Capacity: Approximately 14,980 lbs
Length: 4' stationary + 16' tilt
Width: 83" between fenders
Frame: 8 x 2 x 1/4 tube
Unloaded Deck Height: 25"
Side Rails: 5 x 5 x 5/16 angle (flush floor)
Crossmembers: 3" channels (12" on center spacing)
Fenders: HD Fully Welded 11 gauge
Jack: Single 12K dropleg
Hitch: 2 5/16" adjustable coupler or pintle
Safety Chains: (2) 3/8" Grade 70
Tie-Downs: Stake pockets and (4) D-rings
Storage: Chain tray in tongue
Axles: 10,000 lb. Dexter
Suspension: Torflex
Tire and Wheel: 235/75R-17.5 18 ply super single
Decking: 2 x 8 No. 1 Treated pine
Lights: LED flush mount
Electrical Plug: RV plug
Finish and Paint: Bead blasted, acid washed, zinc rich primed, powder coated
GVWR: 20,000 lbs.
Weight: 5,020 lbs.
Payload Capacity: Approximately 14,980 lbs
Length: 4' stationary + 16' tilt
Width: 83" between fenders
Frame: 8 x 2 x 1/4 tube
Unloaded Deck Height: 25"
Side Rails: 5 x 5 x 5/16 angle (flush floor)
Crossmembers: 3" channels (12" on center spacing)
Fenders: HD Fully Welded 11 gauge
Jack: Single 12K dropleg
Hitch: 2 5/16" adjustable coupler or pintle
Safety Chains: (2) 3/8" Grade 70
Tie-Downs: Stake pockets and (4) D-rings
Storage: Chain tray in tongue
Axles: 10,000 lb. Dexter
Suspension: Torflex
Tire and Wheel: 235/75R-17.5 18 ply super single
Decking: 2 x 8 No. 1 Treated pine
Lights: LED flush mount
Electrical Plug: RV plug
Finish and Paint: Bead blasted, acid washed, zinc rich primed, powder coated
GVWR: 20,000 lbs.
Weight: 5,020 lbs.
Payload Capacity: Approximately 14,980 lbs
Length: 4' stationary + 16' tilt
Width: 83" between fenders
Frame: 8 x 2 x 1/4 tube
Unloaded Deck Height: 25"
Side Rails: 5 x 5 x 5/16 angle (flush floor)
Crossmembers: 3" channels (12" on center spacing)
Fenders: HD Fully Welded 11 gauge
Jack: Single 12K dropleg
Hitch: 2 5/16" adjustable coupler or pintle
Safety Chains: (2) 3/8" Grade 70
Tie-Downs: Stake pockets and (4) D-rings
Storage: Chain tray in tongue
Axles: 10,000 lb. Dexter
Suspension: Torflex
Tire and Wheel: 235/75R-17.5 18 ply super single
Decking: 2 x 8 No. 1 Treated pine
Lights: LED flush mount
Electrical Plug: RV plug
Finish and Paint: Bead blasted, acid washed, zinc rich primed, powder coated
Stock #: 70924
Year: 2024
Brand: B-B Trailers (Behnke)
Type: Equipment Trailer
Length: 20' 0"
Width: 7' 0"
